INTERLOCKING
BLOCK

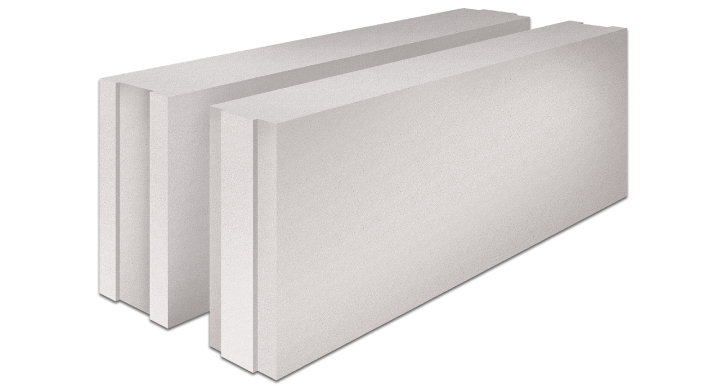

Construction gets easier and neater with the introduction of Stärken Interlocking Blocks. Block edges are profiled with tongue and grove interlocking joint system that does not only make wall construction much easier but also produce a more stable wall.

INTERLOCKING
BLOCK

Construction gets easier and neater with the introduction of Stärken Interlocking Blocks. Block edges are profiled with tongue and grove interlocking joint system that does not only make wall construction much easier but also produce a more stable wall.

Packaging

Length x Height (mm) Thickness (mm) Quantity per pallet Coverage per pallet Weights (kg)
m² m³ CoolPro3™ DuraPro5™
600 x 200 150 120 14.4 2.2 12 15
200 84 10.1 2 16 20

Note :
1. The above information may subject to change.
2. Do not use the above information for calculating the transportation weight and volume.

Application:

  • General internal & external walls
  • Party, compartment & separating walls
  • Acoustic & fire-rated walls

Working dimension:

Length x Height (mm)
Blocks are available in 600 x 200

Properties:

Modulus of Elasticity
1,500 – 2,500 MPa

Ultimate Tensile Strength
0.44 – 0.55 MPa

Modulus of Rupture
0.45 – 0.55 MPa

Compressive Strength: 3.5 MPa
Thermal Conductivity: 0.172 W/m.K
Nominal Dry Density: 500 ± 50 kg/m3
Working Density: 700 ± 50 kg/m3



Compressive Strength: 5.5 MPa
Thermal Conductivity: 0.244 W/m.K
Nominal Dry Density: 600 ± 50 kg/m3
Working Density: 840 ± 50 kg/m3
